About this blog

How much money can you plough into a car before the wife complains.

Entries in this blog

Quinten Uijldert - Northants AO

November 12th, 2017

Spend: £0.00

@maurici kindly offered some free stickers on the forums, providing they ended up on a Westfield and a picture was shared on the thread.  Well, here's mine :)


November 18th, 2017

Spend: £0.00

Created a nice puzzle on the garage floor.




Last month: £  6379.80
This month: £     0.00
            ----------+

Total:      £  6379.80

Quinten Uijldert - Northants AO

Nothing specific to report other than that the crank out of my spare Zetec has been tested for cracks, etc and has been given the :yes: up.  Have been piling up parts and the last of deliveries was today, so the rebuild can finally commence! :yellow-westy:



Last month: £  6349.80
This month: £    30.00
            ----------+

Total:      £  6379.80

Quinten Uijldert - Northants AO

August 26th, 2017

Spend: £0.00

Lost a little interest in the car over the holiday period, but set myself to it today and was pleasantly surprised to discover that removing a crank from an engine is not actually that difficult.



This is the crank out of a spare engine, which, once checked, will be making it's way into my engine.

August 28th, 2017

Spend: £0.00


Fitted the oil pressure gauge that I collected from my engine seller a while back.  It's not from the same VDO series as the rest of my gauges, but beggers can not be choosers ;) I've not been able to test it yet, but it should work as it used to work on this engine and sender...

August 31st, 2017

Spend: £185.00

Collected my gearbox again from Martin after Graham checked it over.  Graham could find nothing wrong with the box, so a combination of wrong oil and/or spigot bearing interference must be what has been causing my crunching in 1st/2nd gear.  Have been advised to stick to Fuchs SYN5 oil, so bought 5L from Julian so I've got enough spare for the coming years :t-up:



Last month: £  6164.80
This month: £   185.00
            ----------+

Total:      £  6349.80

Quinten Uijldert - Northants AO

July 1st, 2017

Spend: £0.00

Paul popped round with his extensive tool kit and we removed the head and inspected it for damages, marks and other clues.  At first the head gasket seemed ok, and so did the pistons and valves except for a clean(ish) section on cylinder 1.



Cylinder 1 also appeared to sit a little lower than it's counterpart 4.


























After rotating the crank by hand and pushing/wiggling cylinder 1, it eventually levelled up again.  This seems to indicate a spun big end bearing.

July 2nd, 2017

Spend: £0.00

Cleaned up garage so I have a working space for the engine and then tried to remove sump with the engine still in place.  Sump would only drop about 3cm before appearing to be stuck on something on the bellhousing.  Really need a crane again to lift the engine out.

July 4th, 2017

Spend: £0.00


After collecting an engine crane and stand from @dombanks last night, I lifted the engine block out and after a lot of puzzling got it mounted to the stand.  With the sump removed you still can't see much, so now need to turn it upside down and then remove windage plate.

July 9th, 2017

Spend: £0.00

A quick 10 minutes in the garage before other chores present themselves.  Rotated the engine on the stand and removed the windage plate.  Nothing visible with that off, but as soon as I removed the bottom half of the conrod...


Yes, that's a spun bearing all right :cry:

July 19th, 2017

Spend: £0.00

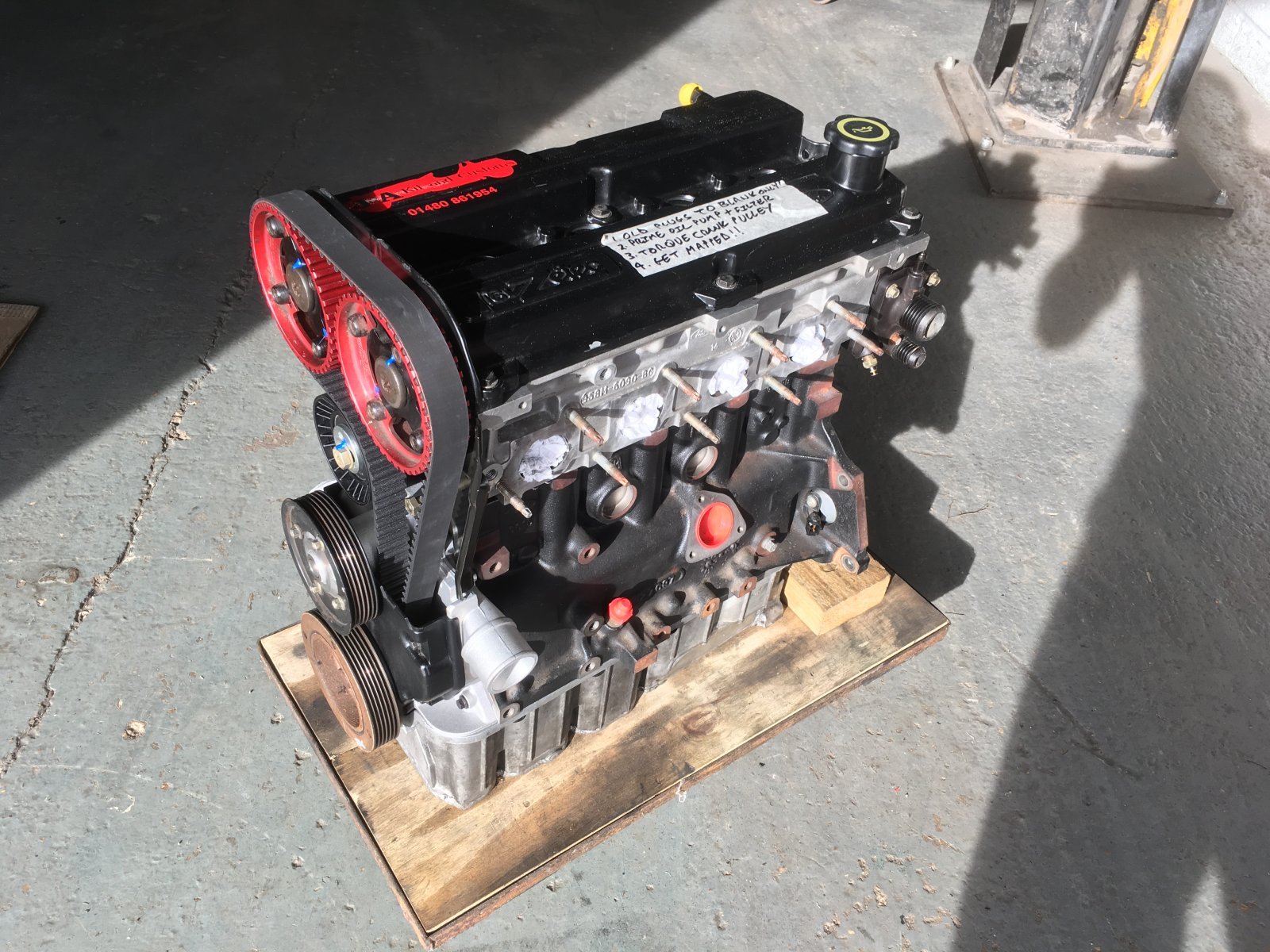

Neil, a local member, kindly offered me an old spare Silvertop he had been storing inside his garage for the past couple of years.  Plan is to use the crank from that engine, rather than trying to see if mine is still usable.






Last month: £  6164.80
This month: £     0.00
            ----------+

Total:      £  6164.80

Quinten Uijldert - Northants AO

June 1st, 2017

Spend: £25.00

When I notified the DVLA about the engine change, I got a letter back saying that they could only accept an inspection of a garage on headed paper.  Visited a few garages today and found  V-A-G Tune Services just around the corner from work who was happy to oblige to that request.  Paperwork now off to the DVLA again, so fingers crossed!

June 11th, 2017

Spend: £0.00


Free tickets to see the GT3/4 racing at Silverstone today, courtesy of Pistonheads.  We stopped at McDonalds for breakfast and then when we tried to leave, the car would not turn over, as if the battery was flat.  A helpful passer by pushed started the car and off we went again.  Turned off the exit road at Silverstone and the car started to struggle a bit, and a loud knocking noise came from the engine.  Pulled over into a layby straight away, and called AutoAid recovery.


After all my hard work and great expense to get a faster car, I now seem to have just a very expensive door stop with suspected spun big end bearings.  1,000 miles is all it lasted...

June 15th, 2017

Spend: £0.00

Tinker day.  Put coolant reservoir on it's own mount, along with the oil catch tank so the scuttle can now be removed without tools.


June 18th, 2017

Spend: £0.00

Paul popped round with a compression test kit and it doesn't look good.  Cylinder 1: 100psi, 2: 50psi :down:, 3: 40psi :down:, 4: 70psi :down:.  We took the cam cover off and went through the required bits that need to be taken off before the head can come off.  It's +30C in the shade in the garage, so I will start on it another day...  Bye bye summer.


June 24th, 2017

Spend: £0.00


Unbolted all the ancillaries off the engine so the head can be removed.



Last month: £  6139.80
This month: £    25.00
            ----------+

Total:      £  6164.80

Quinten Uijldert - Northants AO

May 7th, 2017

Spend: £16.95

After speaking to Graham about my 2nd gear selection issue one of the things I learned was that the Fuchs Titan Race Gear 90 LS differential oil I had put in my live axle with plated diff is the wrong one and that I should have used Castol B373.  Got 2L from Opie and replaced it today.

May 12th, 2017

Spend: £112.11

My new TPS (a Penny&Giles one) arrived from Spoox Motorsport yesterday and as I was "working from home" today I nipped into the garage and fitted it.  Set the start voltage to 0.35V and on full throttle that came to 4.14V.  Pretty much the same as my old one.  Woooohoooo!  Like the proverbial stuff of a shovel, the car now runs as I experienced it all those months ago in Andrew's car.

Shame the weather is p poor, so could only do about 20 miles before it started to rain again.  Just want to drive it now :yellow-westy:

May 13th, 2017

Spend: £2.70

Re-crimped the front lights with new connectors as the ones I used initially were pants.  Also played around with the clutch pedal to see if 2nd gear could be engaged better when slowing down from 3rd.  Made no difference to the baulking.  Will try Graham's suggestion of EP80 oil next, but I'm thinking it needs a look in, and that is just not going to happen this side of summer...

May 21st, 2017

Spend: £0.00

Got up early and met up with @richyb at McDonalds Sixfields and took the long way round to Silverstone to attend the 1st Cars & Coffee event organised there.


May 24th, 2017

Spend: £0.00

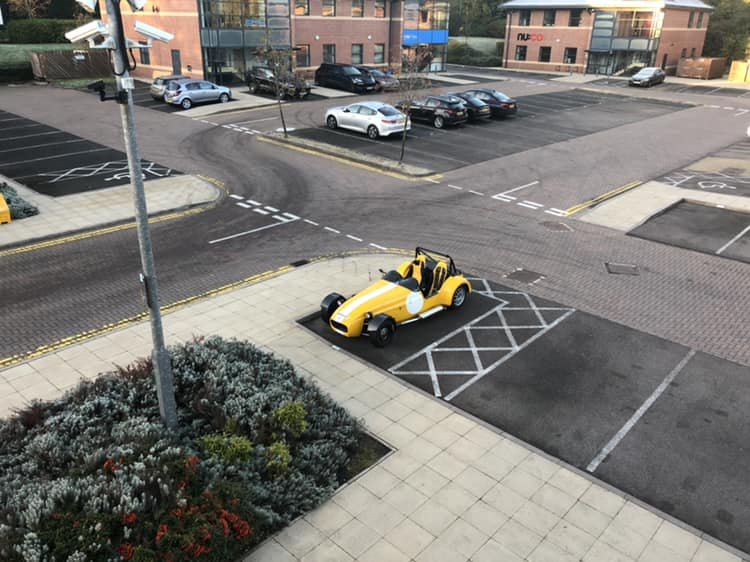

National Drive your Westfield to Work Day...




Last month: £  6008.04
This month: £   131.76
            ----------+

Total:      £  6139.80

Quinten Uijldert - Northants AO

April 1st, 2017

Spend: £9.00

Paul (@black st) offered to come round to see if the car was running on all cylinders and if it did, use his synchrometer to balance the throttle bodies.  After unplugging lead no 2, it was quite clear that the problem lied there.  A quick trip to Halfords to pick up a set of spark plugs was made, but they made no difference.  New coil pack ordered, but it may well be the leads.  Also had a listen at a rattle when the engine was running and this was attributed to the starter pinion gear not disengaging.

April 2nd, 2017

Spend: £48.01

Coil pack arrived from Amazon, so quickly swapped the old one out, but it made no difference.  New (old stock) Motorcraft leads ordered.  Tidied up the electrics and cleaned the cabin so I can put the seats back in.



April 5th, 2017

Spend: £5.00

Had a spare few minutes before dinner and installed the shift lights into a permanent position


April 6th, 2017

Spend: £0.00

Seats back into the car and torqued up the rear wheels.  Just need to fit the rear tonneau cover again and then the rear is completed.  If only I could say the same of the front :(

April 8th, 2017

Spend: £156.10

A beautiful sunny day and here I am again, on the drive, dismantling the car :cry:


The HT leads arrived last night, but the seller had send the wrong type.  No point in post-poning the inevitable so drained the car of coolant (and managed to catch most of it as well!) and petrol and got the engine out in a fairly straightforward matter.  Getting the old flywheel off was a different kettle of fish.  What a pain.  But eventually managed it and installed the new Retro-Ford flywheel.


Now just waiting for the clutch to arrive and then we can put it all back together again!

April 14th, 2017

Spend: £139.89

The new leads and clutch arrived earlier this week, and with it being Good Friday, Paul and I picked today to get cracking and get that darn engine back in.  And back in we got it.  It is so much easier having someone around who's a crack at mechanics.  After everything was connected back up, we refilled it with coolant and switched the ignition on.  Pressed the starter and ...

:yellow-westy::love::yes:

After lunch spend the afternoon getting scuttle and nose cone on.  Need to cut filter hole in the bonnet and then get it a MOT!


April 15th, 2017

Spend: £0.00

Tightened up the headlights, fitted the tonneau and did a quick run down the road.  Oh boy, does she fly!  Googled for a local MOT place open today and ended up at Nene Auto Repairs who was able to fit me in on such short notice.  After a nerve wrecking 40 minutes the tester handed me the piece of paper signing it off for another year...


April 17th, 2017

Spend: £0.00

Dash off again to rotate the shift light as it was showing from right to left, instead of the more natural left to right.  Also programmed it to the new max revs (7500).  Then had a look at the speedometer and added a bridge between terminal 8 and 6.  A test drive later shows it is still not working.  Will need more tinkering.

Finally I made a template for cutting a hole in the bonnet where the filter can protrude.  Lots of yellow dust later I got it nice enough for now.  Need new edging as the one I have is for thinner panels.

April 19th, 2017

Spend: £0.00

More fettling to the speed sensor and all of a sudden it works!  Finally able to see what speed it's going at.  Now just left with the fuel sender not doing much and the "misfire/hesitation when lifting off" issue.  The latter may not be so easily resolved :(

April 22nd, 2017

Spend: £2.89

New edges arrived and I widened up the hole a little more so the filter fits better through it


Spend the afternoon at @black st who was fitting his new diffuser.  Pwooah, nice!

April 23rd, 2017

Spend: £0.00

Butchered my old fuel level sender and put it in the place of the (incorrect) level sender on my new pump.  Now I can at least see when the tank is empty!

April 29th, 2017

Spend: £6.70

The day before the big day!  Cleaned the car (first time since it was parked up last year) and tidied up the interior by re-fitting the tunnel top and carpet.  Also tested a little bit more with the idle screw using @Trevturtle's magic box plugged into the MBE 956E ECU.  Seems to be mainly to hesitate around the 2800-2900 RPM range, but not if you sort of accelerate past that.  But cruise into that range and you will suffer.  Fingers crossed we can get rid of this at Stoneleigh tomorrow...


April 30th, 2017

Spend: £0.00


Sun, lobster, knackered.  Just some of the words I would associate with this years Stoneleigh.  Not seen it so busy as this year.  Bring on the next!



Last month: £  5640.45
This month: £   367.59
            ----------+

Total:      £  6008.04

Quinten Uijldert - Northants AO

March 3rd, 2017

Spend: £47.04

My boss told me to take days off or loose them at the end of the month (we can only carry 10 days over, and I've got 15 left), so today was a day off and spend in the garage.  Fitted some more Mikalor clamps and other minor bits that arrived during the week.  And then started on the big job ahead...  the electrics.  Managed to finish the exhaust side, although I am still some connectors short, but the wires are all in.

March 4th, 2017

Spend: £99.28

Put the inlet side wiring in and fitted the new Powervamp Clubsport NP battery and tray.  Also changed the oil filter (Mann W77) and filled the engine up with oil (Ford Castrol Magnatec Professional 5W30).  Getting closer now...


March 5th, 2017

Spend: £6.99

Started on the scuttle cleanup.  Wanted to install a FIA battery cut-off switch instead of the battery cut-off switch I had previously (operating the battery ground), but decided that the current 'switch panel' was already crowded, so decided to create a new one.  Took longer than planned due to making a stupid mistake with the cut out required for the FIA switch.  Ordered all the battery cables I need, so I can continue that next week.

March 11th, 2017

Spend: £220.04


Received a voicemail yesterday to say that my fuel tank was finished, so after walking the dog, off I went to Armour Fabrications again and collected it, along with a modified exhaust link pipe and a straight filler cap.  Upon my return it became quite quickly clear that the link pipe needs a bigger bent, but I did manage to fit the exhaust.  Also, the fuel tank filler was put on the position on the rear (above where the old one was), but for my top filler it is too far back.  He'd already said to pop round if any tweaks were required, so I'll give him a call Monday to see what can be arranged for Thursday when I've got another day off.


Spend the rest of the day making up new straps from some scrap strips that the fabricator cut for me.

March 12th, 2017

Spend: £17.95

Started on the wiring in the scuttle.  Am already so much happier with the result than I ever was last year when I did it.

March 14th, 2017

Spend: £39.52

Last couple of Mikalor clamps arrived in the post today, so finished off the cooling system.  Just need to fill it up and check for leaks.

March 15th, 2017

Spend: £18.33

Some minor tidy up jobs around the cooling system whilst Mrs Q prepares dinner.

March 16th, 2017

Spend: £37.54

Up early to visit Armour Fabrication again to have the filler spout moved and my exhaust link pipe amended.  Popped round @black st without any notice for a cuppa whilst waiting which just shows that this club has the best members.  Arrived home and fitted the exhaust and started to work on the fine tuning of the fuel tank straps.  What a nightmare.  It only has two straps, one over the short side, one over the long side.  Finally managed to get the short side screwed down, but I've re-used the screws that were on the other strap, so need to do some shopping tomorrow first and pick up some self tappers that fit.  The spout however sits nicely underneath the cap, so once strapped in, I can finally complete the fuel side of the conversion and get some petrol in!

March 17th, 2017

Spend: £0.00

Continued with electrics.  Mounted ECU.

March 18th, 2017

Spend: £3.39

Continued again with electrics.  Other than indicator/hazards all circuits completed.

March 19th, 2017

Spend: £9.58

Connected up passenger side front lights.  Made some brackets for the top coolant pipe.  Fitted long strap over the fuel tank and completed the fuel filler and fuel pump hoses.


March 25th, 2017

Spend: £27.87


Revisited the speed sensor as it could not sense the bolt head and be secure at the same time.  Created a Z bracket and now it can.  Completed driver side front lights and the hazard/indicator wiring.  Filled the car with about 8L mixture of 50/50 Comma SCA5L and Triple QX De-Ionised Water.  Ran out of time (and solder!) to finish off the scuttle wiring.

March 30th, 2017

Spend: £66.38

Re-did the dash wiring and finished off scuttle wiring.  Time to test!  Mixed result.  Hazards, indicators and lights all seemed to work, but horn and fan didn't.  Re-visited the wiring and got the fan working, but even testing the horn in isolation didn't make any noises.  Contacted seller who advised to turn the adjuster screw on it.  Will try that tomorrow.


The ECU however appears to be dead.  Spend ages measuring and tracing, but none-the-wiser why it doesn't seem to power up.  More fun (ahum) tomorrow.

March 31st, 2017

Spend: £20.00

Had some great help from the forums, and most notably a diagram from Mika, aka @Kit Car Electronics, helped me visualise the flow of current and after a good nights sleep I rolled the car out of the garage and paid attention to the ECU connector and ECU relays and I could only come to one conclusion: the green wire is not the ignition live, the white wire is.  So I swapped them around and sure enough, switching on the ignition powered up the fuel pump.  Pressed the starter button and ...

It runs!  The smoke is from the exhaust wrap.  It drinks a lot of petrol though, and @black st seems to think it is not running on all cylinders, so more tinkering tomorrow.



Last month: £  5026.54
This month: £   613.91
            ----------+

Total:      £  5640.45

Quinten Uijldert - Northants AO

February 4th, 2017

Spend: £66.98

Completed engine mount alteration and now it looks like the bonnet fits, as well as having enough clearance with the alternator on the chassis.


Started on fuel lines and relocated fuel pressure regulator to the rear of the engine next to the coils by altering an IKEA fastener slightly.


Fastened the clutch and accelerator cables.  Measured up all the cooling pipe sizes so I can start ordering these up.  Also won a starter motor on Ebay, bit of a gamble with regards to the right size.  Will know next week!

February 5th, 2017

Spend: £0.00

Fuel lines in and secured.  Ordered more parts, but will have to start a serious measure with regards to the cooling pipes.  Looks like I can't use much (if at all) of the stuff I received with the engine.

February 11th, 2017

Spend: £24.80


Installed fuel filter on another IKEA bracket.  Starter from Ebay didn't fit after all.  The three mounting points are unfortunately in a different position.

February 18th, 2017

Spend: £14.85

Busy week leading up to today.  Was handed goody bag from @dombanks with hoses at our monthly meet, picked up a Polo rad from @Neil Boyd and visited @black st who hooked me up to a local guy that is a wiz with a welder.  Fuel tank dropped off for adding more capacity and converting so I can use the Landrover pump and complete the fuel system.  Also got another bag of hoses from Paul.

At home I installed the starter that I got from a guy from the Locostbuilder forums who kindly agreed to let me try it before I buy it.  Needed 5mm of spacers to make it fit, but can't test engagement until I've got the rest of the car up and running.


As the postman failed miserably this week to deliver some cooling pipes, I created a cover plate for the exhaust gap instead.


February 19th, 2017

Spend: £70.13


Dug out the exhaust wrap I bought 2 years ago and finally applied it to the exhaust header.  Had to enlarge the cover plate hole slightly.  Then fitted the rear lights which I had exchanged last year.


Also fitted the new wheel speed sensor.  The sensor needs to be in almost beyond the point of where the nut can hold it.  Not sure the gap is correct, so may need to be re-visited again at a later stage.


February 25th, 2017

Spend: £9.16

Had two aluminium spacer plates delivered which raise the nose cone 6mm.  Trial fitted it and now the bonnet clears the belts at the front of the engine.  Success!


Combined bits from various old cooling hose shapes and managed to get a route around that would work well enough.  Still not received a T piece so unable to complete one section, and the 'hockey stick' I ordered from Westfield does not have a collar for a fan switch, but for a temperature gauge.  Have therefore decided to sell that on, and use the older 'hockey stick' that I got with the engine.  I will put wires in place for a fan switch, but not actually use one.  I'll use the manual override instead for now.

Then put my focus on the wiring.  Cable tied the engine harness and put convoluted wrap around the wiring that is exposed.

February 26th, 2017

Spend: £8.76

An easy relaxed day.  Made a plan for the wiring and noted down all the lengths and colours required.  Met up with @nyvlem who is still building a Blacktop SDW Westfield.



Last month: £  4831.86
This month: £   194.68
            ----------+

Total:      £  5026.54

Quinten Uijldert - Northants AO

January 3rd, 2017

Spend: £10.00

Visited local welding place Bucks Welding & Fabrication who welded a larger metal plate on the bottom of the mount so there is a better surface cover.


January 7th, 2017

Spend: £6.98

Back to the engine mount.  This time armed with some additional aluminium spacers I fixed the pedestal into its final location.  The engine is mounted!


Now concentrating on the exhaust.  Started with another hole in the body in front of the old Crossflow exhaust position.


January 8th, 2017

Spend: £0.00

What a pain getting the exhaust manifold in.  Ended up with enlarging the hole so that it meets the old hole.  Will have to get some kind of cover for it in the future.  For now I just want it to work.  Will need a small section of exhaust as the manifold sits further forward.  Thankfully it clears the wheel when turning.


















Then took everything out of the car again and put the gearbox and engine together on the floor along with the clutch and coverplate.  Don't seem to have 5mm play between release bearing and finger plate like @Marto303 said I would need, but have yet to find out if it matters.

January 14th, 2017

Spend: £4.49

Fitted propshaft back into car and tightened all bolts up for the axle.  Also looked more closely at release bearing which seems to be too tall for my set up.  No alternative found yet.  Handbrake on offside does not seem to want to engage/dis-engage like the nearside does.  Getting a bit fcked off

January 21st, 2017

Spend: £13.39

Replaced clutch release bearing and created spring on fork.  Still no free play on fork.  Giving up.  Handbrake continues to stick, but re-reading an old post it seems to have happened before.  May need to disassemble the brake to resolve.  Will leave for now.  Put brake pipes back on rear and re-filled DOT4.

January 22nd, 2017

Spend: £0.00

Continued with assembly at rear.  Car back on wheels and out of the garage for more clutch figuring out.  Hooked up to clutch pedal it looks like the clutch action is correct and there is just no free play for the fork.  Adding 3mm spacers still did not add free play.

January 28th, 2017

Spend: £13.81

After visiting @Marto303 during the week who kindly arranged for a flywheel/clutch measuring session it was pointed out to me that the best thing to do was to mark the location of the fingers in relation to the shaft and then see where the release bearing would sit in relation to the mark.


You can see that it is right on the mark!


Obviously it is not ideal, but with no money available for a new flywheel, clutch and coverplate, it will do.

Then rearranged the garage in preparation for the gearbox/engine fitting tomorrow!

January 29th, 2017

Earned: £3.35

I'm just going to leave this here


Used some old IKEA metal brackets to create some spacers to put just a little more distance between clutch and release bearing and then put it all back in the car.  Filled the gearbox and diff with fresh oil.  Engine is back on the mounts, but not happy with the final fit of the driver/intake side mount.  Ideally I'd like it a bit higher, but there is no more thread on the rubber engine mount.

Also managed to sell my old Spax shocks today to a Locost builder from Kettering.

January 31st, 2017

Spend: £10.00

Went back to Bucks Welding & Fabrication who butchered a small pedestal together using my old Crossflow mount.  Can't beat that service!



Last month: £  4776.54
This month: £    55.32
            ----------+

Total:      £  4831.86

Quinten Uijldert - Northants AO

December 5th, 2016

Spend: £17.26


Refitted the high level brake light and roll bar back onto the car.  Also connected up the high level brake light to wiring loom and tested it to make sure it has never have to come off again ;)

December 9th, 2016

Spend: £923.00

Got a message from @windy at the beginning of the week telling my that my gearbox and diff were ready and were being dropped off at @Marto303's on Thursday.  So quickly arranged with Martin to collect the rest today.  Graham informed me that it's been a miracle that my gearbox and diff survived the "bodge" job that a previous builder had performed.  It did mean that it had now needed more money spend on it to rectify it but that should be money well invested.


15409492_722205914603368_1484002243_o.jp

December 10th, 2016

Spend: £248.70

Started off with replacing the roll bar set screws with new 10.9 M10x30s and nylocs as the originals were a little too short to my liking.  Then onto the axle along with the newly bushed trailing arms and the new Protech rear shocks supplied by Luke from @Plays-Kool.  Small issue with the new shocks which have a wider bush fitted than the old Spax, but after advice on the forums and some common sense thinking I fitted those without inner washers inside the bracket.


 Got further stuck with the offside top trailing arm when I tried to mate it with the shock using a lengthy 7/16 UNF bolt. The bolt would not go through the bush, and when I tried to force it through without the shock, it got so stuck the only option seemed to be to take the axle out again and cut the bolt.  Cue, lots of swearing.  After Q jr arrived back home from work we removed the axle again from the car and left it for the next day.

December 11th, 2016

Spend: £0.00

A good nights sleep does wonders.


With a little levering against the brake drum and using a spanner to rotate the bolt, it finally came out again.  Pfew!  Compared the bolt to the one for the other side and it seemed to be identical, yet the other bolt went through the bush just fine.  Weird or what?!?  I then checked all trailing arms, and only one of them had no problem with this bolt.  So marked them up and asked Mrs Q to help lift the axle to slide it back into the car again.  With the assistance of the engine crane I managed to get all trailing arms bolted back up, and also the panhard rod was fitted back in.  Took a step back to admire my work and then thought that something was not quite right.  Looked through my pictures from the "before" moment, and sure enough, the brake drums were upside down!  The OSR and NSR drums need to be reversed and rotated.  Cue, more swearing.  Quick message to Martin and he's kindly offered to come round on Tuesday evening to swap them over.

December 13th, 2016

Spend: £0.00


In exchange for two cups of coffee Martin and his colleague made short work of swapping the half shafts around :t-up:

December 17th, 2016

Spend: £20.00

Spend all day getting gearbox and engine in.  It's not easy on your own to keep the engine at a certain level without help, and by the time Q jr arrived home from work I was short on time and light and then had to remove engine again.  Left the gearbox in the car on a new mount as the old one was cracked.

December 26th, 2016

Spend: £70.23

Put the car the other way around in the garage and on stands.  With the assistance of a borrowed engine leveller from @Marto303 the engine was put back in in a jiffy.  The inlet side engine mount seems to fit straight onto the position of the old Crossflow mount, but for the exhaust side it is a little more involved.


For the exhaust side I had bought a new mounting plate, after advice from the club I, and am re-using the old Crossflow mount.  Little by little taking a bit off the old mount until it starts to fall into place.


December 27th, 2016

Spend: £0.00


Continued to work on engine mount only to discover it would fall foul off the exhaust manifold on the drop.  Plan B starts here:  Will have to use the mount at the front of the engine instead.


The only issue with this is that the pedestal sits further forward on the welded ground plate so it will need a larger plate to make it more secure.

The exhaust manifold will exit in front of current exit point, so need to check it does not interfere with steering extremities.  Shame about the existing hole, but I suppose some flared panels in the future will take care of that.


Also re-fitted the alternator and although it fits, it has minimal space with the chassis bracing.  May need to replace this once the engine is on mounts with a smaller alternator.


Finally, I also tried to fit my old Crossflow starter, but it cant be put into position as it fouls on the sump.  Guess a new LRS707 is required.



Last month: £  3497.35
This month: £  1279.19
            ----------+

Total:      £  4776.54

Quinten Uijldert - Northants AO

November 5th, 2016

Spend: £0.00

Got the roll bar off using some heat to soften the glue and a putty knife to wedge in between bar plate and body work. Then started to work on the new carbon boot sides.


Once I got the holes right, the rest was just fine tuning. Now just the filler itself to do, but I will wait until I've been to the welder to see what is possible


November 6th, 2016

Spend: £28.98

Fixed the brake line in the tunnel back using rubber lined P-clips, and replaced one or two broken saddle clips with new ones. Fitted the conduit and pulled wiring from the scuttle to the rear.

November 12th, 2016

Spend: £17.67

Continued with wiring at the rear.

November 13th, 2016

Spend: £5.58


Finished most of the wiring at the rear.

November 20th, 2016

Spend: £13.50

Further completed the boot side panels and reduced width of handbrake load spreader as it was rubbing against the wiring loom.


November 25th, 2016

Spend: £50.00

At first I was not going to touch the roll bar, then I briefly considered painting it myself, until I had a quote from a local powder coating company to have it properly done.  Collected it today and it looks like new :yes:

The only snag is that I didn't remove the rose joints and the rubbers on them cooked in the oven.  Another thing to replace!



Last month: £  3381.62
This month: £   115.73
            ----------+

Total:      £  3497.35

Quinten Uijldert - Northants AO

October 1st, 2016

Spend: £1500.00

What's the best way to speed up the Mighty Crossflow?


You replace it with a Zetec ;)

I bought this last month from another WSCC member after he took me out in his car with this engine in it. Complete with ECU, manifold and as much ancillaries as he could spare. 180BHP on the Northampton Motorsport rollers.

October 2nd, 2016

Spend: £0.00

Cleaned up the garage and moved stuff about so the engine can be stored for a while whilst I take my own engine out. Borrowed an engine crane from Lewis and placed the new engine on a trolley for easy manoeuvring.


October 3rd, 2016

Spend: £0.00

As the car is off the road for a good couple of months, I am also going to take the live axle out so it can have the bearings replaced as it is leaking on the nearside. Also taking the opportunity to replace all the rear bushes and the rear suspension. The fuel tank needs to come out for that, so made a start with emptying it and removing the fuel tank straps.

October 6th, 2016

Spend: £0.00

Took the fuel tank out and removed the rear lights. The rear lights need to go back to the manufacturer as they have condensation inside.



October 8th, 2016

Spend: £0.00

Time to crack on :yes:

Removed the radiator, all the coolant hoses, spilling a lot of coolant on my drive in the process. Also drained the engine of oil and removed the tunnel top and seats. Disconnected the engine from everything and left it only on the engine mounts.


The pile of parts is steadily increasing

October 9th, 2016

Spend: £0.00



Well, that was easy!

October 15th, 2016

Sold: £500.00

Who knew old oily Crossflows are worth a pretty penny? Did some small jobs on the car whilst waiting for Andy from Sheffield to collect my old engine. He's going to drop it in a Mark 1 Escort... The Circle of Life!

October 16th, 2016

Spend: £0.00

After I struggled last week to disconnect the prop-shaft from the diff in the tunnel, I discovered that it is much easier to remove the gearbox first, then slide the axle and diff assembly backwards so it would all be accessible from the boot.

Did not realise that the gearbox would dump all its oil when you lift it out though, so spend half the afternoon cleaning up the drive with degreaser. Doh!


Took the angle grinder to the diff flange bolts but it remained firmly connected to the prop-shaft. Time to call it a day.

October 22nd, 2016

Sold: £20.00


Finally. Now the cleaning can commence.

Also sold my old 15" alloy wheels.

October 23rd, 2016

Spend: £0.00

Cleaned up the engine bay until I ran out of cleaning products. Also removed the dash/scuttle by cutting a slot underneath the column. This was something I wanted to do for a long time, as I can now remove it all in one go, for easy access to the electrics.


October 24th, 2016

Spend: £0.00

Dropped the axle and gearbox off at Martin Harvey for bushes, bearings and seals.

October 25th, 2016

Spend: £20.00

As I am relocating the filler neck to the boot, I picked up some carbon boot side panels and carbon fuel cap cover from Mark Russel.

October 29th, 2016

Spend: £0.00

Trial fitted the new engine to see if it would actually fit or not. Turns out the answer is maybe... The alternator is awfully close to the chassis, but as I do not have the engine mounts yet, final confirmation will be once I've got the gearbox back in and the mounts measured up.


October 30th, 2016

Spend: £29.10

Continued with cleaning. Felt I needed a little victory so fitted the carbon filler cap replacement


and the new Hella high level brake light I bought to replace my half working Ebay Chinese special.


Had hoped to remove the rollbar so I could easily get the wire inside it, but seems like the original builder likes his adhesive fixings, as it is glued on with some stuff that I could not yet undo. Will continue with that next week as I need to slide my boot lid sides over the diagonal.



Last month: £  2312.52
This month: £  1069.10
            ----------+

Total:      £  3381.62

Quinten Uijldert - Northants AO

June 18th, 2016

Spend: £0.00

Cleaning the car for its attendance tomorrow at the Earls Barton Classic Car breakfast meet, I snapped my centre mirror off :(


Only had it for a month, so sent a snotty email to Car Builder Solution to see what they can do.

June 19th, 2016

Spend: £0.00

Got up early with Q-jr


Met up with Richard and Chris


Drove for a bit picking up Mark and Jim on the way and ended up parked in a field in Earls Barton


And after a while, Colin joined us as well


Returned home, watched the F1 and went out for dinner at the Walter Tull... Brilliant fathersday :yes:

June 24th, 2016

Spend: £0.00

After I didn't hear anything on my email to Car Builder Solution, I followed up with a call. New 'leg' arrived in the post today, so a brilliant service after all



Last month: £  2312.52
This month: £     0.00
            ----------+

Total:      £  2312.52

Quinten Uijldert - Northants AO

May 1st, 2016

Sold: £20.00

The annual pilgrimage to the spiritual home of the kit car... Stoneleigh! Organised a small convoy with the Northants members


Photo courtesy of Mark Russel of Carbon-NV fame :yes:

and when we arrived there, I was told to park it at the front of the Westfield Avenue :d


Managed to sell my old mirrors, but gave the cycle wings and harness to the club to sell, hopefully raising some money for the WSCC supported charity.

May 4th, 2016

Spend: £19.44

As Car Builder Solutions did not bring any stock to sell to Stoneleigh, they gave all their visitors a card with a 10% discount code and free shipping. Wanted a centre mirror for ages, so decided to take them up on the offer ;)


May 8th, 2016

Spend: £29.28


So after yet another oil related incident last month, I discovered that my fuel pump cover plate did not have a deflector fitted. Barney mentioned he had one left over from his Crossflow days, so picked it up and installed the new plate with a new gasket. Also redid the oil breather pipes to the catch tank so it now only breathes from the crank, and no longer from the top of the engine. Seems to work much, much better.


My old air filter really needed to be replaced but as I could not find a matching filter size, I resorted to these Ram Air socks.

May 24th, 2016

Spend: £0.00

Set a little challenge to the members of the Facebook group to commute in the Westfield to work today. I do this of course all the time :yes:


At 6:44 in the morning it was surprisingly cold still


The 'driveway' at Stowe


The Mushroom Tree in Botolph Claydon


Traffic lights from hell


See you in 8 hours!



Last month: £  2283.80
This month: £    28.72
            ----------+

Total:      £  2312.52

Quinten Uijldert - Northants AO

April 2nd, 2016

Spend: £2.25

On recommendation of the forums added a little bit of storage capacity to the car


and then spend the afternoon cleaning the first month of driving off the car again


April 10th, 2016

Spend: £4.95


Saw this in one of the old Westfield World magazines so a while back when we happen to visit our local Ikea, I bought a FLÖRT.


With a little bit of help of my dearest mum, aka the sewing machine, it was made to measure :yes:



April 23rd, 2016

Spend: £0.00

Got back to my car yesterday afternoon to find a small amount of sludge in the footwell. Turned out my oil catch tank was leaking so went home and cleaned up the mess. Going to order new hoses and fix this once and for all.

Also put a nice coat of wax on in preperation of Stoneleigh next week :yes:

April 30th, 2016

Spend: £0.00


Ready for the annual pilgrimage :yes:



Last month: £  2276.60
This month: £     7.20
            ----------+

Total:      £  2283.80

Quinten Uijldert - Northants AO

March 11th, 2016

Spend: £0.00

Dotting i's and crossing t's. Fixed the issue with the shift light and applied some Sikaflex to the DRLs in the cycle wings. And then went for the first spin this year! :t-up::yellow-westy::love:

I would have video footage to proof it, but my son pressed the record button twice instead of once, recording a still of his hand in front of the camera and nothing else :down:

March 12th, 2016

Spend: £9.96


Swapped my scuttle bolts/nuts over for quick release skewers, the ones you use to secure your bicycle seat post. Should make removal next time around a little bit easier. Also put two push switches on the control panel: one to open the secure parking gate, the other for the garage door :t-up:

March 25th, 2016

Spend: £80.89

Was browsing Ebay one evening last week and someone listed a (slightly) used Westfield 4-point harness, with a Buy-It-Now price that was just to good to let go. So fast-forward to today when the courier dropped them off and the exchange could take place

From


to


in an hour or so :yes:

March 31st, 2016

Spend: £0.00

Big shout out to the weather today as it enabled me to book the car in for it's MOT. Considering I've done 5577 miles in the past 12 months it was good to hear that it passed with just the two advisories:

- Front wheel bearing has slight play (both sides)

- Slight oil leak

Number two is quite obvious and persistent, so not sure how I am going to resolve this without extensive engine/gearbox removal, but I should at least be able to resolve number one... Time to find out what bearings I have and how to replace them :yes:



Last month: £  2185.75
This month: £    90.85
            ----------+

Total:      £  2276.60

Quinten Uijldert - Northants AO

February 7th, 2016

Spend: £0.00

Armed with white spirit, brake cleaner, cloths and wire brushes attacked all the nooks and crannies to make it as clean as possible. I'm changing plans slightly; originally I was going to use carpet glue to stick the carpets down, which requires a very clean surface, but now I think I will be using Sikaflex instead as it would provide the same bond, but is a lot more forgiving on the surface prep.


Next step, making carpet templates...

February 12th, 2016

Spend: £5.00

I bought the carpet nearly a year ago, but it's taken up until today to do something with it. Quite difficult to get the dimensions right, but my first panel is done :yes:


February 14th, 2016

Spend: £0.00


Could not continue yesterday as it was raining, so after a nice Valentine's breakfast I spend more time with the carpet. Almost done :yes:

February 20th, 2016

Spend: £0.00

Final bits of carpet cut.


February 21st, 2016

Spend: £10.09


Have not appreciated how much Sikaflex EBT+ is required to fix one panel of carpet, so I ran out! Ordered 3 tubes from CPC which should be ample.

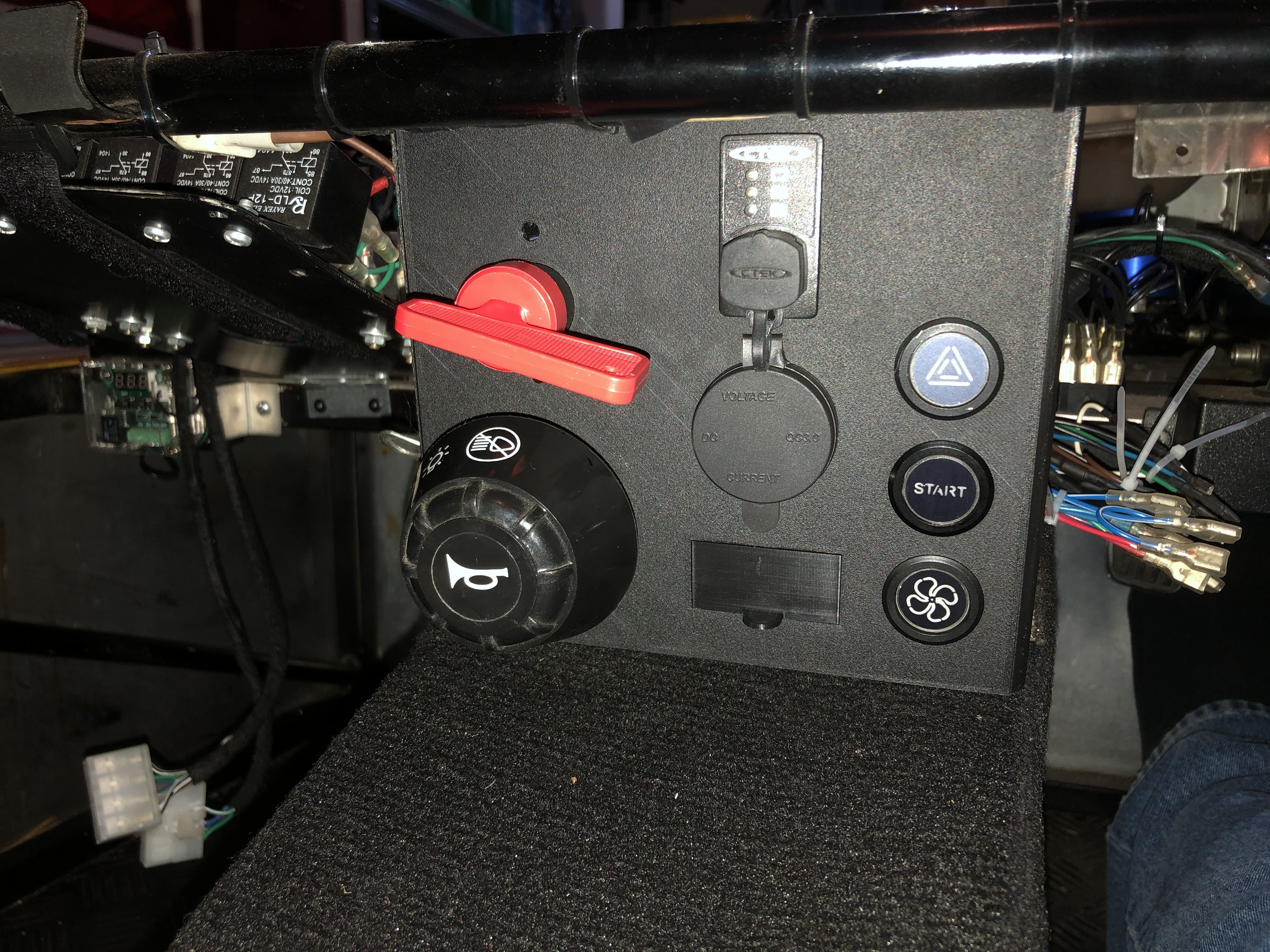

Fortunately I still had a small job to do: fit my CTEK dash panel


February 26th, 2016

Spend: £8.99

Nearly done now. Just the back panel and tunnel top to complete.


February 27th, 2016

Spend: £0.00


Luxury plush carpets!

February 28th, 2016

Spend: £39.00

Another small job I'd postponed until today is fitting the Firmtec Sequential Shift Light which Santa kindly brought me. Unfortunately it doesn't seem to do anything so I will have to remove scuttle/dash again and see what my wiring is like.


Seats back in, carpets done, tax paid for... bring on Spring!





Last month: £  2122.67
This month: £    63.08
            ----------+

Total:      £  2185.75

Quinten Uijldert - Northants AO

January 17th, 2016

Spend: £0.00

Decided to finally make a start with the winter upgrades although the temperature outside made it not very pleasant. As I'll be fitting (finally!) some carpets I stripped the car of it's interior and scuttle to allow for decent access.


Ready for the next step; cleaning up the accumulation of oil, grime and grit.




Last month: £  2122.67
This month: £     0.00
            ----------+

Total:      £  2122.67

×
