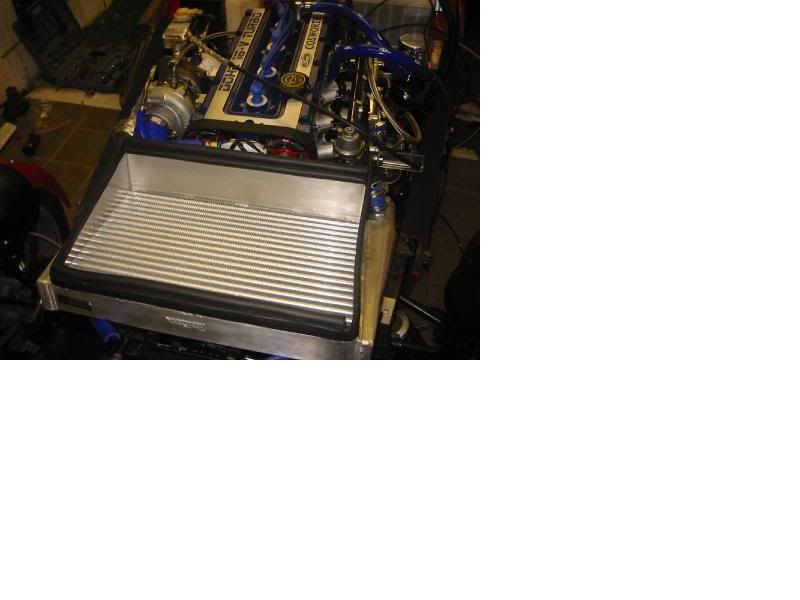

polly_x Posted February 15, 2010 Posted February 15, 2010 PRICE REDUCED NOW £180 Hi, I am selling my custom made Pace intercooler that was made to be as big as possible and fit inside an SEIW nose. This is perfect for any turbo charged Westy or similar. Core is 450mm x 290mm x 50mm Over all width inc tanks 570 tapering down towards the front to 500. I have been using this for 2 years now on my car and its worked great. I am only selling it as it sadly is now on its limits in terms of air flow and now suitable for my setup. It flows enough air for upto 420BHP. It has 60mm inlet and outlets with bosses for a water injector and a standard weber type Air Charge Temp sender on the outlet side. It has mounts on the underside that you cant see in the pictures which is where it bolts down. As you can see in the picture it sits flat below the nose and has raised sides where I used foam to make a seal with the nose. You can also see in the second picture how I ducted extra air to it using a custom carbon fibre air scoop. Its not as shiny now as it is in the picture as thats when it was new. Would like £220 for it which is less than half what it cost me to have made. Any questions please shout!
scruffythefirst Posted February 15, 2010 Posted February 15, 2010 Have you got the dimensions? Been considering an upgrade for the Dax.
polly_x Posted February 15, 2010 Author Posted February 15, 2010 Have you got the dimensions? Been considering an upgrade for the Dax. Hi Hugh, will need to get them tomorow as its still up at Pro Alloy. Will get the boys to measure up and put dimensions on here.
scruffythefirst Posted February 15, 2010 Posted February 15, 2010 If its going to be there all week I'll have a look if thats ok? I need to take some bits up for them to stick together if I can get round to borrowing a mates lathe. Did you log any charge temps / boost pressure etc with that setup? I've got a nosecone scoop ducted to my intercooler, but its upright so the air can flow straight out the back rather than down, didn't you run it with 2 fans on originally?
polly_x Posted February 16, 2010 Author Posted February 16, 2010 If its going to be there all week I'll have a look if thats ok? I need to take some bits up for them to stick together if I can get round to borrowing a mates lathe. Did you log any charge temps / boost pressure etc with that setup? I've got a nosecone scoop ducted to my intercooler, but its upright so the air can flow straight out the back rather than down, didn't you run it with 2 fans on originally? Yeah it will be there all week no doubt. It used to see late 30's early 40's at about 1.6/1.8 Bar Boost. I did run it with fans yes to help with low speeds/stationary heat soak. I have them here too if your interested. Stu
scruffythefirst Posted February 17, 2010 Posted February 17, 2010 Hi Stu, Had a measure up today, looks like it won't fit my Dax without loads of re-arangement - too many custom bits in the way. Cheers anyway.
polly_x Posted February 18, 2010 Author Posted February 18, 2010 " too many custom bits in the way" Its a kit car.......re-customise them!
polly_x Posted March 2, 2010 Author Posted March 2, 2010 BTTT with price reduced. Now looking for 180.
