Stack ST700 Dash Display for sale

[Dave Eastwood (Gadgetman) - Club Chairman]

Stack ST700 Dash Display. This is far more than just a rev counter, with shift lights, it comes with the optional analogue extension harness and oil pressure as well as temperature senders, plus extension harnesses. This is also the "road" version, with a functional odometer and tripmeter built in.



I never used the speedo, (I had a separate Stack speedo), so you would need to buy the wheel speed sensor, but the upside, is the odometer shows the predelivery test mileage only, (0.2 miles), so you essentially get to start from zero.



Quoting Stack's own advert:



Quote



The ST700 dash display system from Stack is a tachometer, sequential shift light, Speedometer and voltmeter all integrated into a reliable single 80mm diameter instrument. To enable other parameters to be monitored, the system includes 2 other configurable channels that can be set for pressure or temperature.

All thats needed is a separately available sensor and wiring loom to enable to the ST700 to display up to 2 of the following -

Water Temperature

Oil Temperature

Air Temperature

Oil Pressure

Fuel Pressure

Turbo Boost Pressure

The ST700 has a user settable alarm feature to provide a warning for any of the monitored parameters eg - Low oil Pressure or High water temperature, plus a peak value recall facility is included to show the maximum or minimum figure reached for each parameter.

The tachometer uses Stacks legendary stepper motor to provide extremely accurate and waver free needle movement. 3 rev ranges are available from 0-8000 through to 15000 Rpm with the option of black or white dial face. The inbuilt sequential shift light features 4 ultra bright LEDs which can be set to operate in 4 different patterns - Sequential, Sequential & Blink, Bar, Simultaneous. Each light can be set individually and brightness is adjustable to suit the ambient light conditions.

Also included in the ST700SR is a street legal speedometer display with odometer and trip meter. The speed can be selected in MPH or KPH and the odometer can be set for Miles or Kilometres.





This is the special order 0 to 10750 rpm version, to suit the Honda VTEC engines rev range. Though obviously, it will work any ware below that maximum rpm, too.

The ST700 new price is £588

Analogue wiring harness new price is: £150

Oil pressure sender, new price is: £94

Oil temp sender, new price is: £52

Wiring loom extension for sensors, new price is: £36

Total for ST700, to buy new: £920



Yours for £545 including (UK) carriage









[Dave Eastwood (Gadgetman) - Club Chairman]

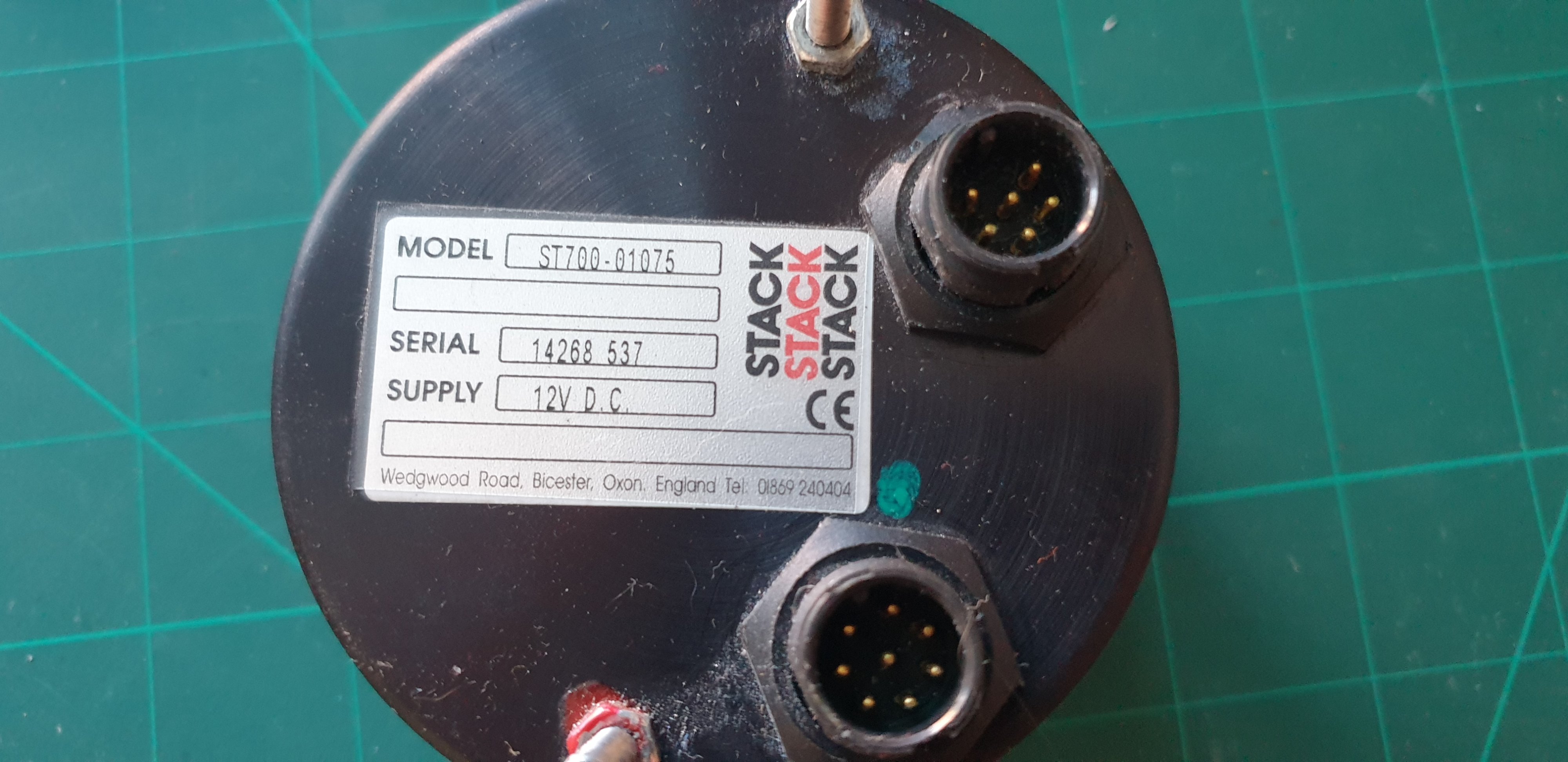

ST700 Dash:



Includes the push button, and rotary switch.









Main two looms, plus two extension looms for oil temp and oil pressure





Oil pressure and oil temp senders





[Dave Eastwood (Gadgetman) - Club Chairman]

Speedo reading: (they are tested at Stack, so come showing 0.2miles on the odometer)





And the (re-settable) trip meter.
