Raceline sump question....

[Paul T]

Could someone advise which pickup the Raceline sumps take?

I’ve been offered one for my 1800 Silvertop

Thanks

Paul

[Ray The Brake]

HI Paul

I would take a look at the Raceline website first of all failing anything coming back on here, ring Raceline they are very helpful.

Sorry I couldn't be more helpful

.....................................................................................

[Paul T]

That was my first port of call, however there is nothing  specifically about the pick up on there

[thebutler]

Raceline have their own pickup, that's somewhat integrated into the sump

[Paul T]

9 hours ago, thebutler said:

Raceline have their own pickup, that's somewhat integrated into the sump

Yeah I can see that part, does the standard pick up just connect to that?

[Kevin Wood]

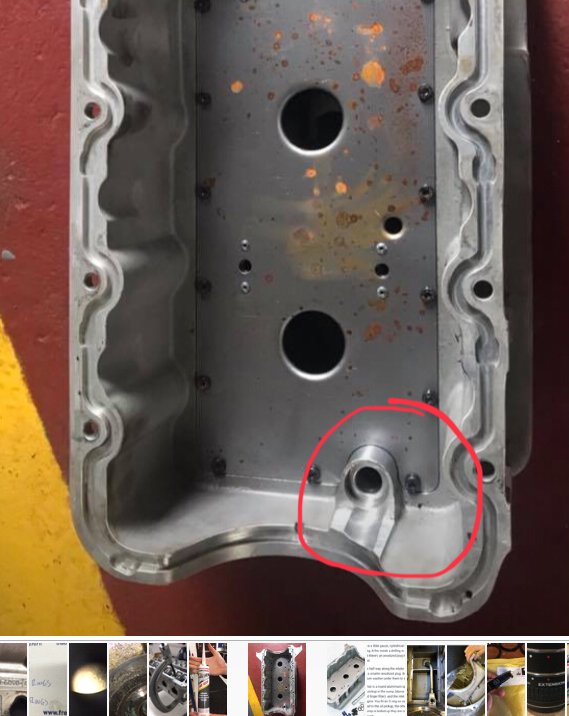

There's an aluminium tophat that sits in the hole circled, with an O ring above and below. As you bolt the sump up, it compresses the O rings and forms a seal directly into the base of the oil pump.

[Terryathome]

There are 2 windage trays, 1 for the 1800 and 1 for the 2 liter

Just saying

[Paul T]

What sort of money should I be paying do you think?

[DamperMan]

On 18/10/2018 at 16:23, Terryathome said:

There are 2 windage trays, 1 for the 1800 and 1 for the 2 liter

Just saying

The black top needs to use the silver top windage tray or race lines own one.   Didn’t think the 1.8 or 2.0 where different.  The windage tray when fitted to the black is not directly bolted to the engine like silver tops but spacered and bolted to the steel cover in the raceline sump. . There for the steel cover in the sump needs needs captive nuts when used with a black top.

[DamperMan]

Maybe this will help



[Paul T]

Thanks mate, I’m following that thread

[CrisisWolf]

On 20/10/2018 at 14:43, DamperMan said:

Maybe this will help

Thanks - its gonna start soon! Following the MOT next week it'll be the first job.
